Innovative system for doors, shutters and large size windows in PVC. The only aluminum corner joint that makes PVC frames stable. Fixing with welding carried out.

Tools needed: Allen wrench and screwdriver.

Ortles

Technical Scheme

Technical Scheme

Ortles Video

Go to the channel
Ortles 1

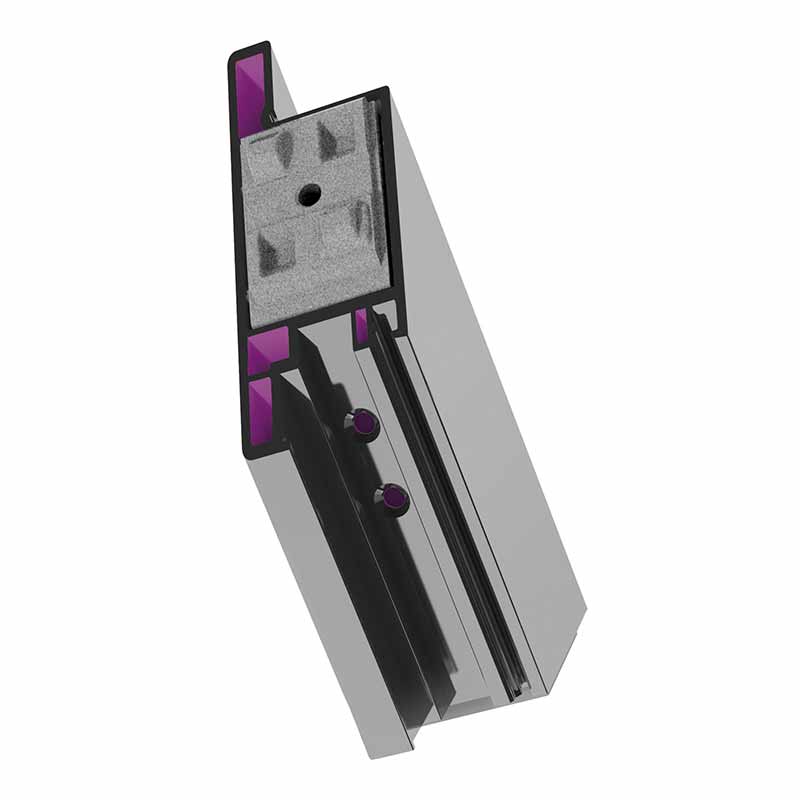

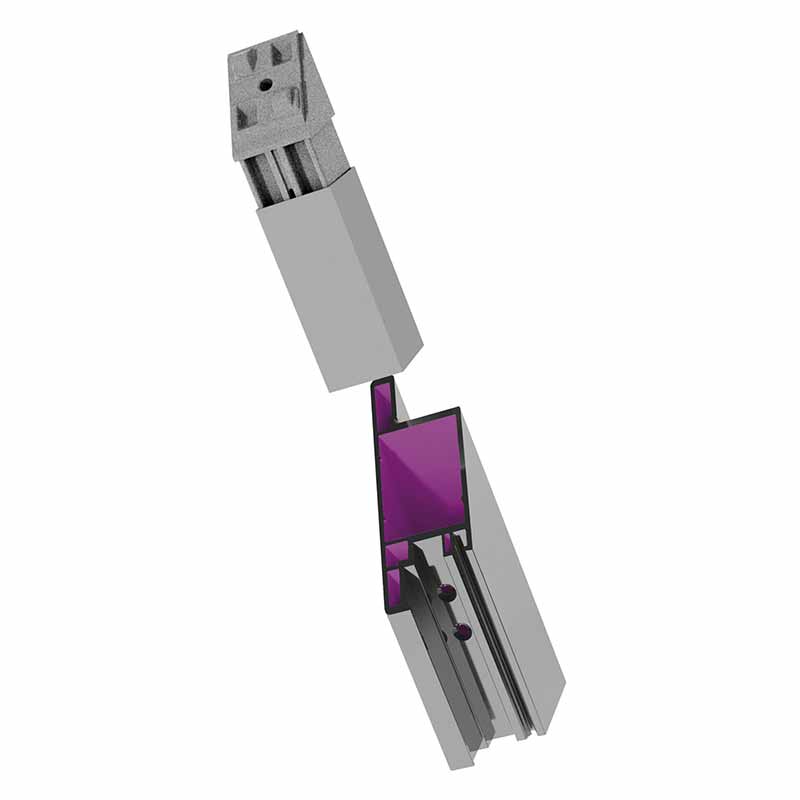

Insert bracket into metal profiles.


Ortles 2

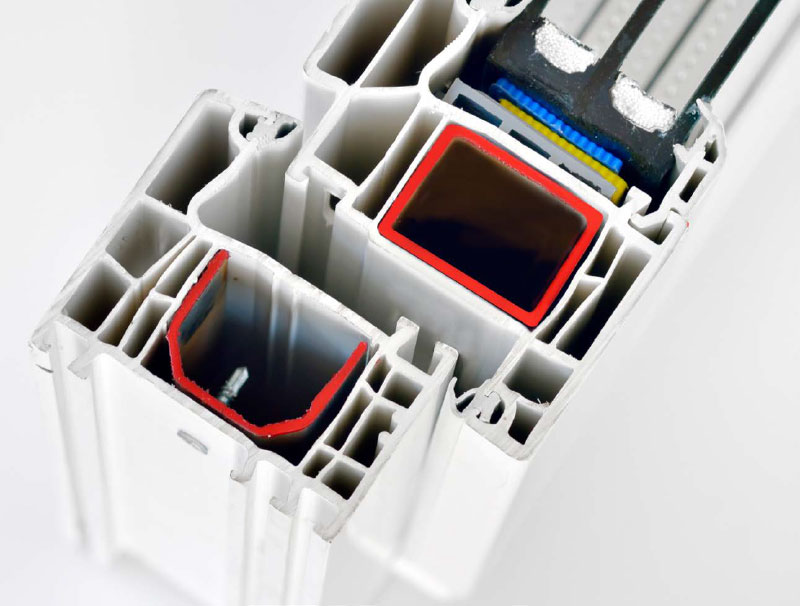

Insert metal profiles into PVC profiles.


Ortles 3

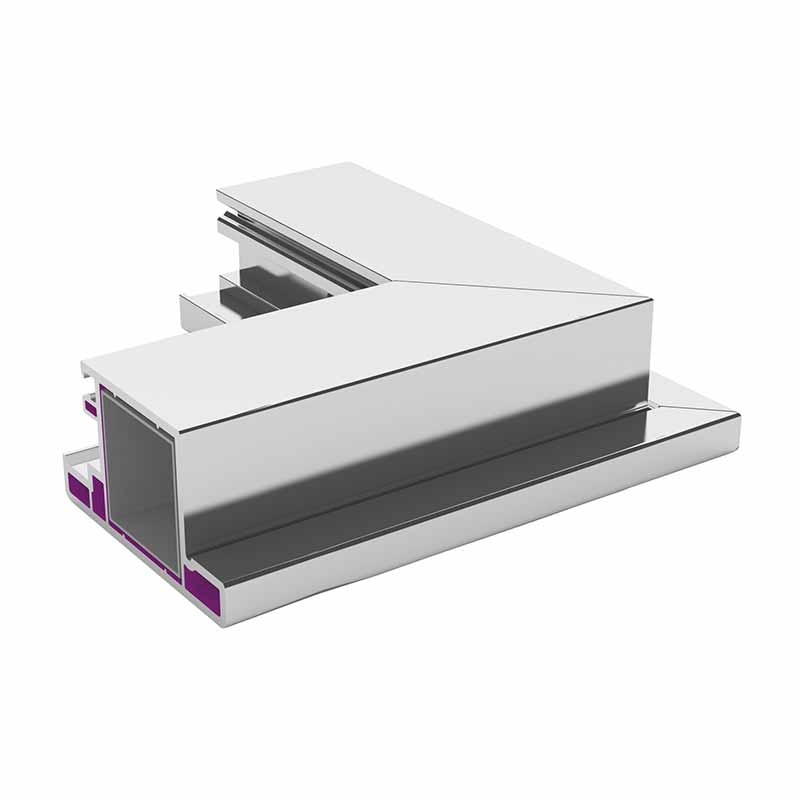

Conventional welding of PVC profile.


Ortles 4


Insert screws into bracket.


Ortles 5

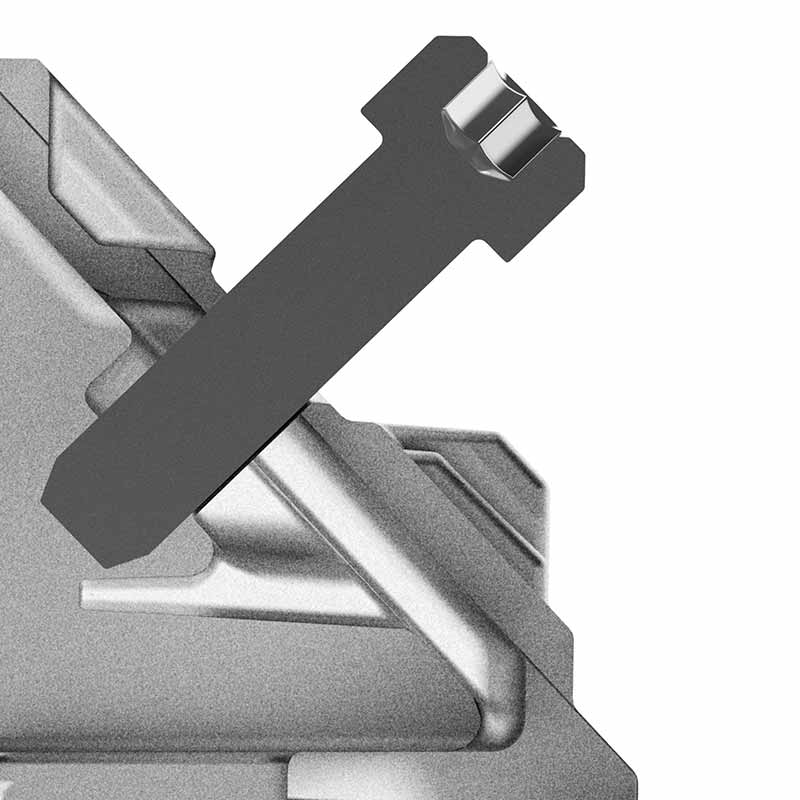

Tighten firmly to stop point.


Ortles 6

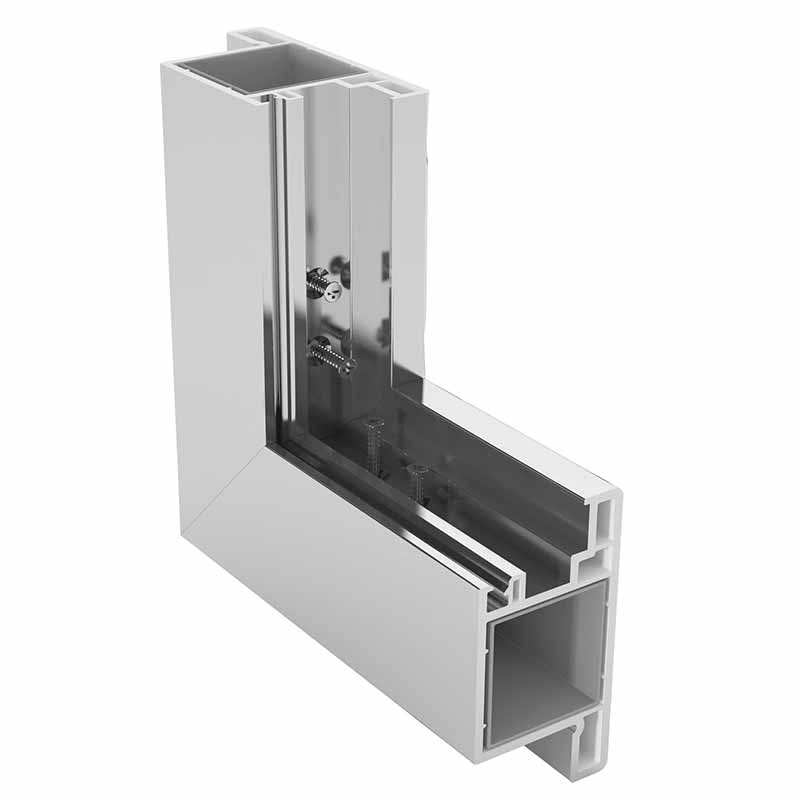

Tubular elements fixed on bracket with self-threading screws.


Ortles 7

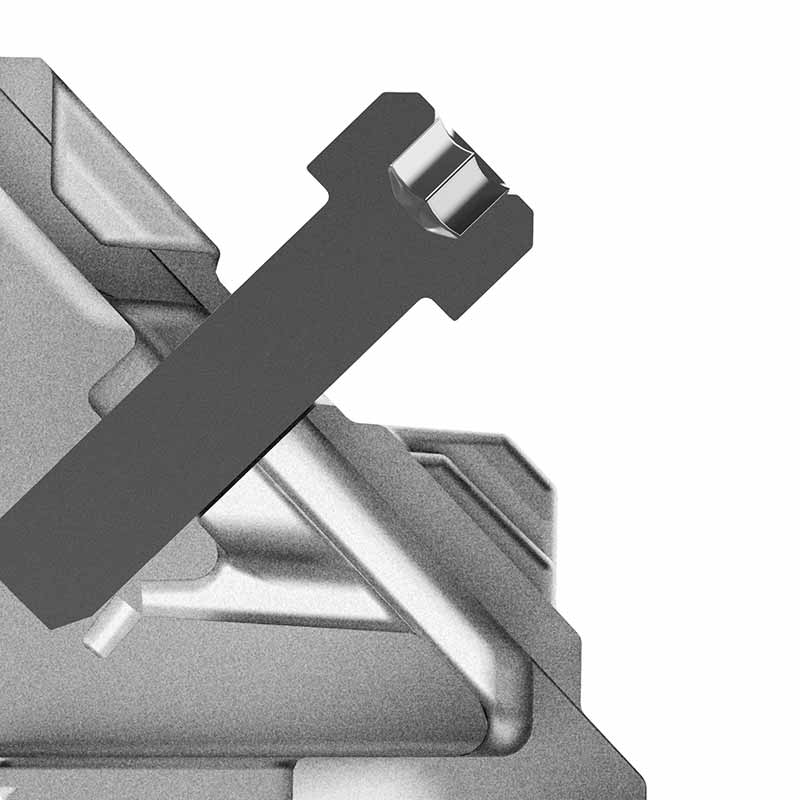

Tighten bracket and break off stop.


Ortles 8

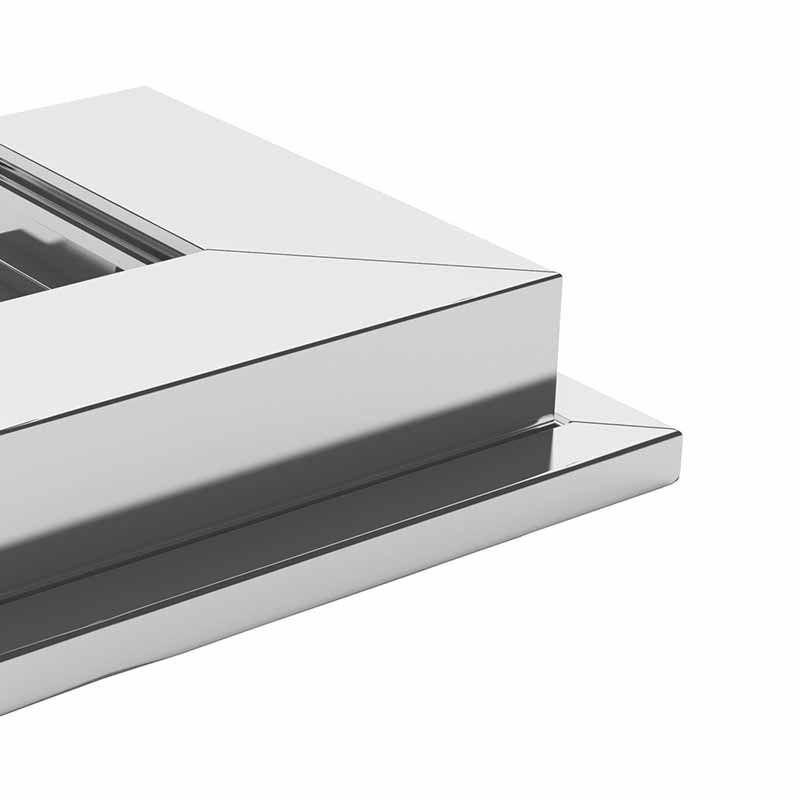

Installation complete. The end results is a perfect 90° angle ensuring total stability and mechanical resistance.
