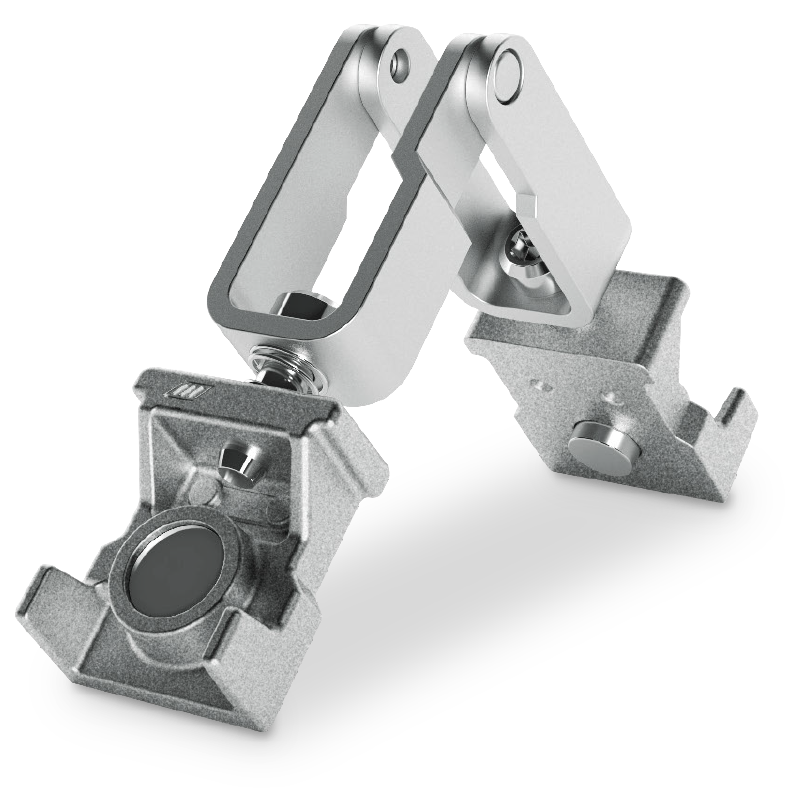

Variable angle corner joint with spring-loaded die-cast aluminum fixing devices (for internal or external assembly) and steel junction. Designed for easy-use, with maximum strength and an excellent finishing.
Attrezzatura di serraggio richiesta: chiave esagonale.

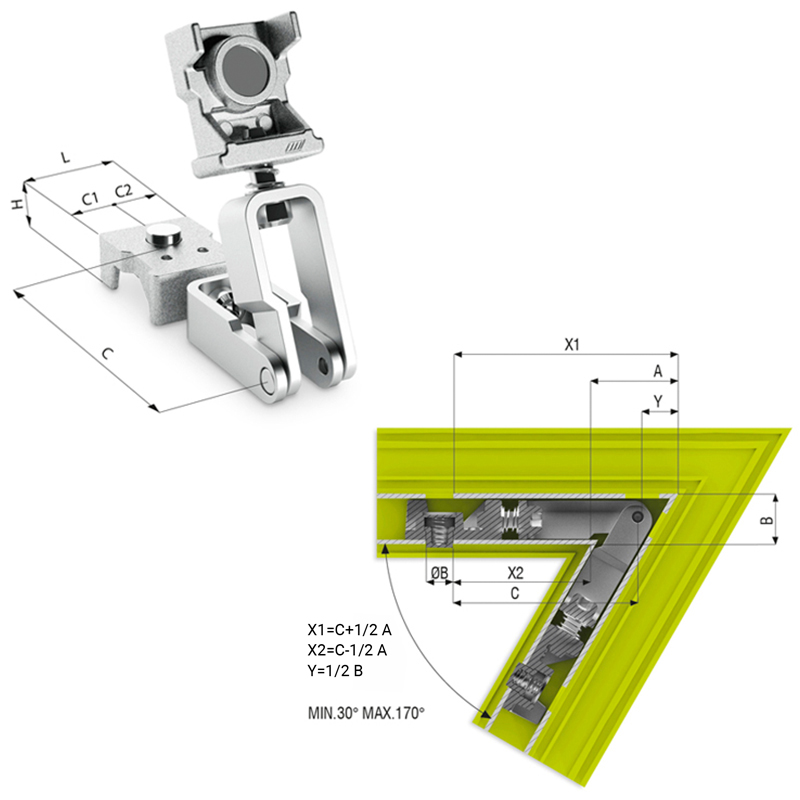

| CODE | W | H | FEATURES | Download |
|---|---|---|---|---|
| 0900.X/20 | 35,80 | 14,10 |   Ø11 | |
| 0900/20 | 35,80 | 14,10 | Ø11 | Technical Sheet Profile Processing |
| 0901/20 | 35,80 | 15,00 | Ø11 | Technical Sheet Profile Processing |
| 0903/20 | 40,30 | 15,80 | Ø11 | Technical Sheet Profile Processing |
| 0905/20 | 45,50 | 15,90 | Ø11 | Technical Sheet Profile Processing |
| 0906/20 | 45,50 | 20,40 | Ø11 | Technical Sheet Profile Processing |
| 0909.10/20 | 26,90 | 14,50 | Ø10 | Technical Sheet Profile Processing |
| 0910.10/20 | 23,10 | 14,00 | Ø10 | |
| 0910.10/8/20 | 23,10 | 14,00 | Ø8 | |
| 0916.10/20 | 45,80 | 13,70 | Ø10 | |
| 0920.10/20 | 40,80 | 9,80 | Ø10 | |
| 0920.10/8/20 | 40,80 | 9,80 | Ø8 | |
| 0921.10/20 | 40,80 | 9,80 | Ø10 | |
| 0922.10/8/20 | 19,20 | 8,60 | Ø8 | |
| 0927.10/20 | 16,80 | 14,30 | Ø10 | |
| 0927.10/8/20 | 16,80 | 14,30 | Ø8 | |
| 0931.10/20 | 25,00 | 17,20 | Ø10 | |
| 0941.10/20 | 28,50 | 14,50 | Ø10 | |
| 0943/20 | 41,40 | 24,90 | Ø11 | Technical Sheet Profile Processing |
| 0945.10/20 | 35,50 | 9,90 | Ø10 | |
| 0946.10/20 | 36,00 | 30,60 | Ø10 | |
| 0950.10/20 | 28,60 | 14,00 |  Ø10 | |
| 0965.8/20 | 26,00 | 10,00 | Ø8 | |
| 0965.8X/20B | 26,00 | 10,00 | Ø8 | |
| 0969.10/20 | 21,80 | 10,00 | Ø10 | |
| 0969.10/8/20 | 21,80 | 10,00 | Ø8 | |
| 0980.10/8/20 | 29,80 | 9,80 | Ø8 |
