Everest

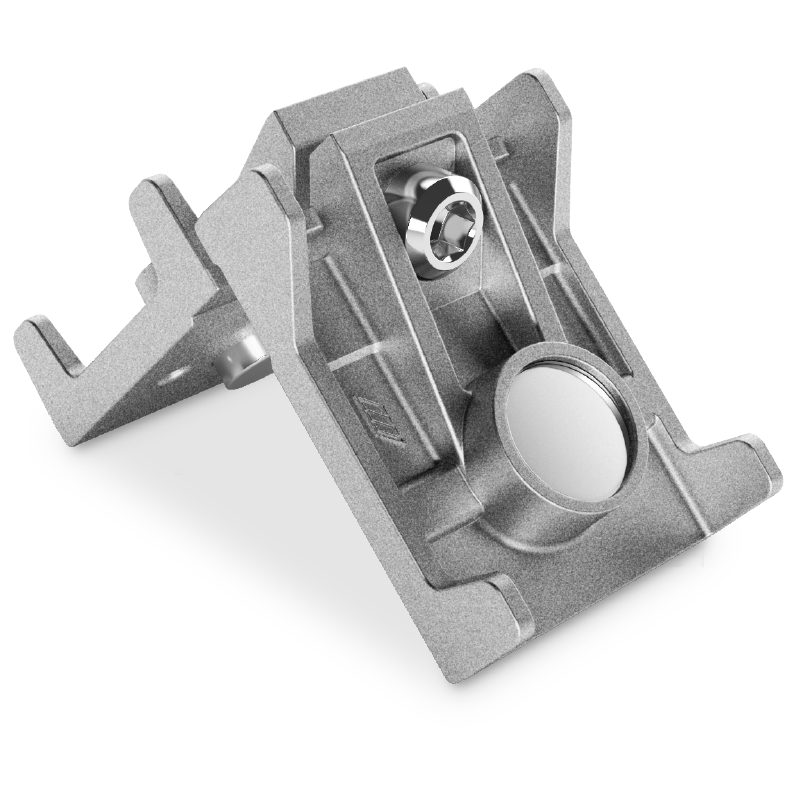

Die-cast aluminum corner joint with inward spring-loaded buttons, tightening screw.

Tools needed: Allen wrench.

Everest

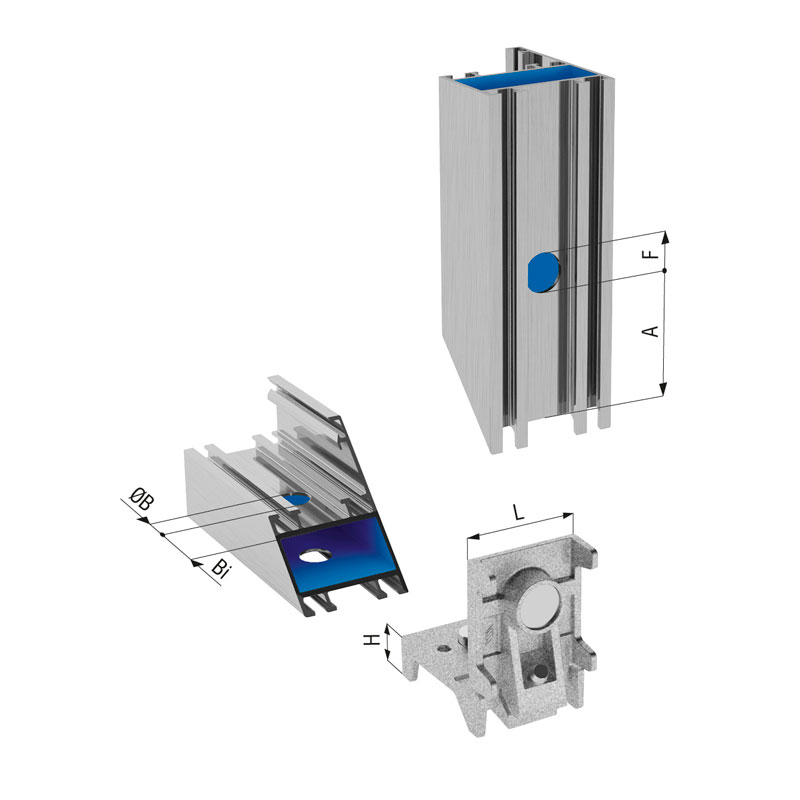

Technical Scheme

Technical Scheme

Everest Video

Go to the channel
CODE W H FEATURES Download
0200.X/25035,9013,80 Ø11,5
0200/25035,9013,80 Ø11,5 Technical Sheet
Profile Processing
0202/25040,0014,20 Ø11,5 Technical Sheet
Profile Processing
0203.11/8X/5040,2015,80 Ø8
0203/25040,2015,80 Ø11,5
0204.11/10/15040,1026,00 Ø10,5
0204.11/8/25040,1026,00 Ø8
0204.MX/15040,1026,00 Ø11,5
0204/15040,1026,00 Ø11,5 Technical Sheet
Profile Processing
0206.11/8/25044,9020,50 Ø8
0206.X/25044,9020,50 Ø11,5
0206/25044,9020,50 Ø11,5
0207.X/25036,0010,00 Ø11,5
0207/25036,0010,00 Ø11,5 Technical Sheet
Profile Processing
0208/25036,0016,20 Ø11,5 Technical Sheet
Profile Processing
0211/25033,8010,30 Ø11,5 Technical Sheet
Profile Processing
0212/15040,0027,70 Ø11,5 Technical Sheet
Profile Processing
0213/15040,1025,00 Ø11,5 Technical Sheet
Profile Processing
0214.MX/10040,0026,00 Ø11,5
0214.X/10040,0026,00 Ø11,5
0214/10040,0026,00 Ø11,5
0214F.X/10040,0026,00 Ø11,5
0217/25028,7015,90 Ø11,5 Technical Sheet
Profile Processing
0300/25035,9013,70 Ø11,5 Technical Sheet
Profile Processing
0301.11/8.MX/25035,9015,20 Ø8
0301.11/8/25035,9015,20 Ø8
0301/25035,9015,20 Ø11,5 Technical Sheet
0305.MX/20044,8015,60 Ø11,5
0305/20044,8015,60 Ø11,5 Technical Sheet
Profile Processing
0306/25044,9020,80 Ø11,5 Technical Sheet
Profile Processing
0310.10/8/25041,1010,30 Ø8
0310/25041,1010,30 Ø10,5 Technical Sheet
Profile Processing
0412/25026,4013,90 Ø10 Technical Sheet
Profile Processing
0416/25020,8022,80 Ø10 Technical Sheet
Profile Processing
0422/25021,9023,00 Ø10,5
0433/20025,0024,70 Ø10,5 Technical Sheet
Profile Processing
0440.10/8/25019,3010,50 Ø8
0440.10/9/25019,3010,50 Ø9
0440/25019,3010,50 Ø10,5 Technical Sheet
Profile Processing
0441.10/8/25024,0010,40 Ø8
0441.10/9/25024,0010,40 Ø9
0441/25024,0010,40 Ø10,5 Technical Sheet
Profile Processing
0467.10/8/25026,4013,50 Ø8
0467/25026,4013,50 Ø10 Technical Sheet
Profile Processing
0477.10/8C/25021,207,80 Ø8
0489.10/8C/25026,207,80 Ø8
4176.9/25021,908,10 Ø9
