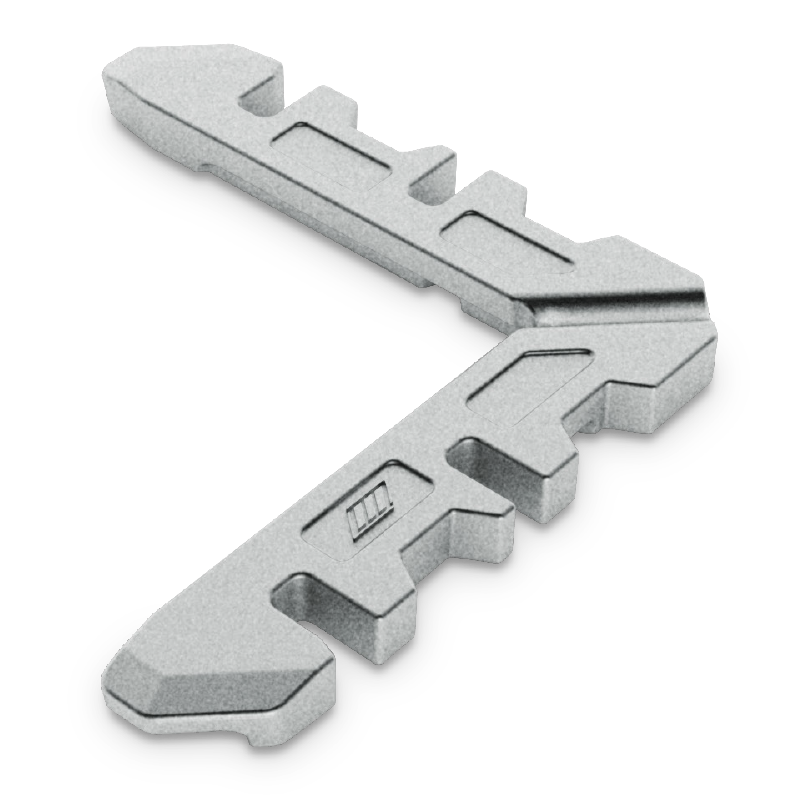

Cervino piano

Multifunction die-cast aluminum corner joint for pinning, crimping or screwing. Normally used in the secondary groove of TT profiles to align and support the main corner joint. Pins and screws are sold separately.

Tools needed: Allen wrench or hammer or pinning or crimping machine.

Cervino piano

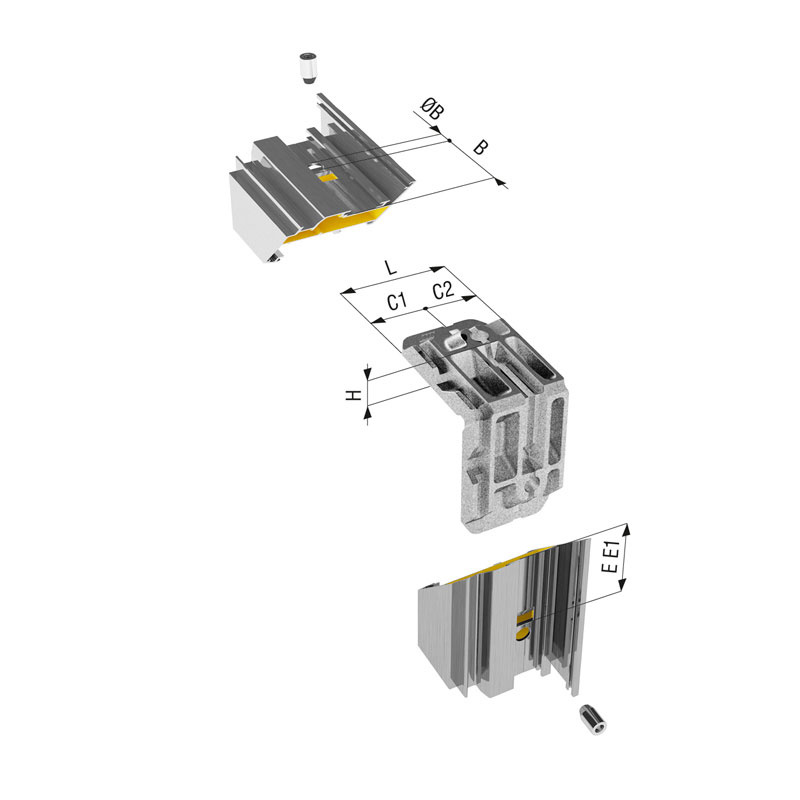

Technical Scheme

Technical Scheme

Cervino piano Video

Go to the channel
CODE W H FEATURES Download
0126/2507,3031,40 Ø3
0128/25011,908,40 Ø3 Ø3,5 Technical Sheet
Profile Processing
0129/2504,9011,90 Ø3 Ø3,5 Technical Sheet
Profile Processing
0130/20011,9011,90 Ø3 Ø3,5 Technical Sheet
Profile Processing
0133/2006,906,20 Ø3 Technical Sheet
Profile Processing
0137/2004,3014,00 Ø3 Technical Sheet
Profile Processing
0138/2007,5010,10 Ø3 Technical Sheet
Profile Processing
0139/2004,3010,10 G Technical Sheet
Profile Processing
0140/5002,609,00 E Technical Sheet
Profile Processing
0141/5008,9012,10 G Technical Sheet
0142/2004,3014,00 E Technical Sheet
Profile Processing
0143.F/2505,1017,40 Ø8
0145/2509,0012,00 Ø3 Technical Sheet
Profile Processing
0146/2504,608,40 Ø3
0148/2509,7028,70 Ø3 Technical Sheet
Profile Processing
0170/2508,8013,60 C Technical Sheet
0171/2506,2015,20 Ø3 Technical Sheet
Profile Processing
0172/2504,3026,10 Ø3 Technical Sheet
Profile Processing
0173/2504,3039,10 Ø3 Technical Sheet
Profile Processing
0178/5006,207,20 Ø3 Technical Sheet
Profile Processing
0180/2005,3010,70 Ø3 Technical Sheet
Profile Processing
0181/2005,3014,70 Ø3 Technical Sheet
Profile Processing
0182/2005,3024,70 Ø3 Technical Sheet
Profile Processing
0186/5008,907,90 Ø3 Technical Sheet
Profile Processing
0187/5008,6010,10 Ø3
0188/2005,007,00 G Technical Sheet
Profile Processing
0189/2502,9013,60 Ø3 Technical Sheet
Profile Processing
0190/2007,5014,80 Ø3 Technical Sheet
Profile Processing
0192/2507,5010,10 Ø3 Technical Sheet
Profile Processing
0198/20015,4032,60 Ø4 Ø5 Technical Sheet
Profile Processing
0199/25015,4015,00 Ø4 Ø5 Technical Sheet
Profile Processing
1100/2506,906,20 Ø3
1101/2004,4031,90 Ø3 Ø3,5 Technical Sheet
Profile Processing
1104/2504,3533,40 Ø3 Technical Sheet
Profile Processing
1105/2508,1013,80 Ø3,5 Technical Sheet
Profile Processing
1108/25012,009,80 Ø3 Ø3,5
1109/25011,9021,60 Ø3 Ø3,5
1113/25012,8013,90 Ø3 Ø3,5
1115/2506,207,40 Ø3
1120/2506,7032,00 Ø3 Ø3,5
1121/25011,5040,70 Ø3 Ø5
1122/25011,6033,70 Ø3 Ø5
1124/2507,9023,80 Ø3 Ø4,5
7507N/25010,6019,50 U Profile Processing
